Mechatronic grippers

The company SMW-AUTOBLOK from Meckenbeuren on Lake Constance now offers a complete portfolio of mechatronic grippers and various accessories for the digitization and automation of processes.

Thanks to Plug &Play and existing PLC software modules, mechatronic grippers are quickly installed for EOAT automation / robotics and offer the user maximum safety through integrated sensor technology and tested safety concepts, as well as other significant advantages such as

  • Process-reliable automation
  • Mechatronic drives
  • Reduction of CO2 footprint and energy consumption

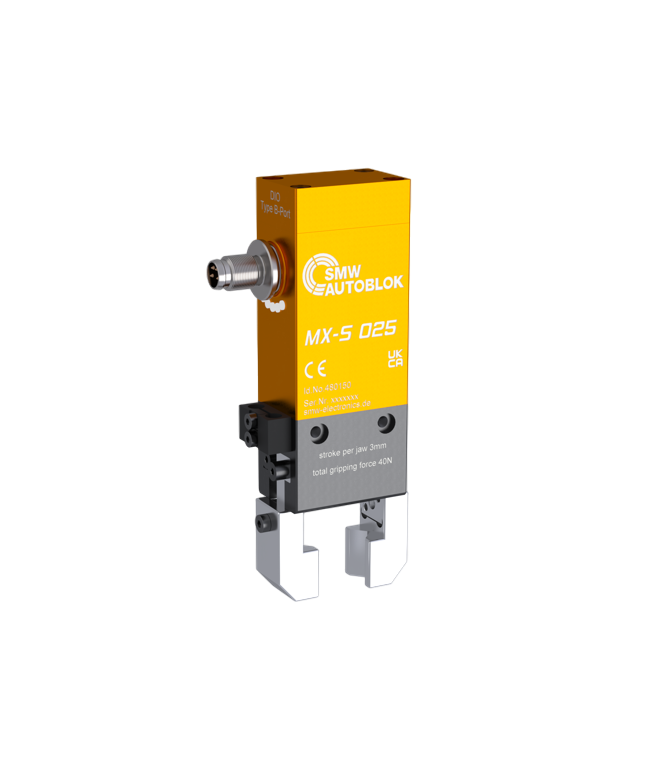

None for MX-S 025 DIO

ID-No.: 480150 MX-S 025 DIO
Mechatronic small parts gripper

  • Gripping force independent of gripping speed and stroke

  • Mechatronic drive with gripping force retention

  • Gripping force up to 40 N

  • Jaw stroke 3,0 mm per jaw

  • IP40 Protection class

  • Suitable for use as small parts gripper due to lightweight and compact design

  • Also suitable for cobot applications and pick & place tasks

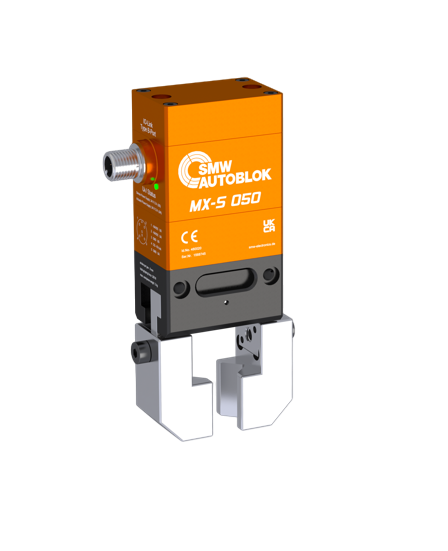

None for MX-S 050 IOL

ID-No.: 480020 MX-S 050 IOL
Mechatronic small parts gripper

  • Gripping force independent of gripping speed and stroke

  • Mechatronic drive with gripping force retention

  • Gripping force up to 200 N

  • Jaw stroke 8,0 mm per jaw

  • Position sensing

  • Pre-positioning and gripping force adjustment

  • IP40 Protection class

  • Suitable for use as small parts gripper due to lightweight and compact design

  • Also suitable for cobot applications and pick & place tasks
None for MX-S 050 DIO

ID-No.: 480120 MX-S 050 DIO
Mechatronic small parts gripper

  • Gripping force independent of gripping speed and stroke

  • Mechatronic drive with gripping force retention

  • Gripping force up to 200 N

  • Jaw stroke 8,0 mm per jaw

  • IP40 Protection class

  • Suitable for use as small parts gripper due to lightweight and compact design

  • Also suitable for cobot applications and pick & place tasks

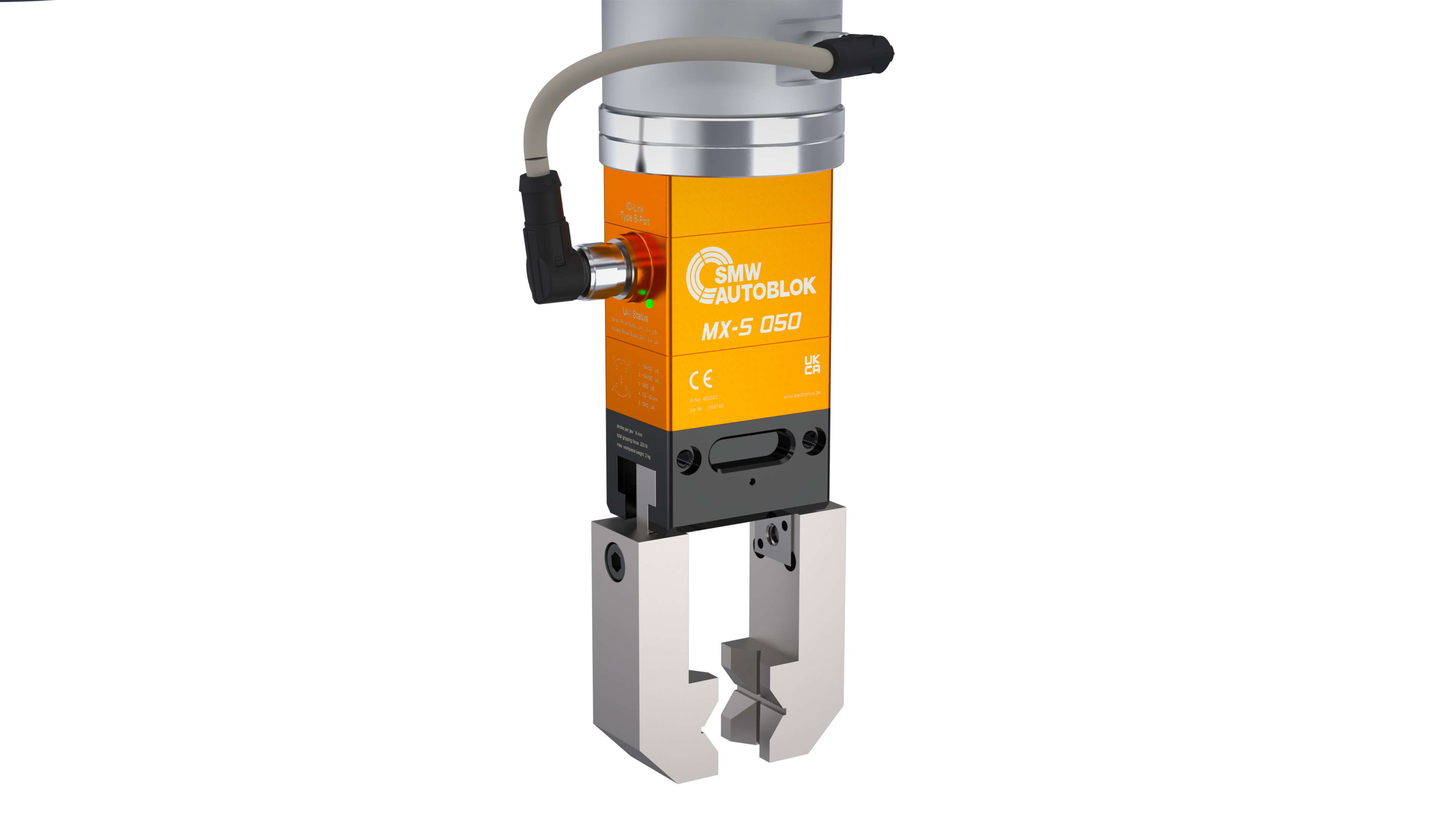

None for GRIPPER KIT MX-S 050 UR

ID-No.: 480220 GRIPPER KIT MX-S 050 UR
Mechatronic small parts gripper

  • Gripping force independent of gripping speed and stroke

  • Mechatronic drive with gripping force maintenance in the event of power failure

  • Gripping force up to 200 N

  • Jaw stroke 8.0 mm per jaw

  • IP40 protected

  • Use as a small parts gripper due to lightweight and compact design

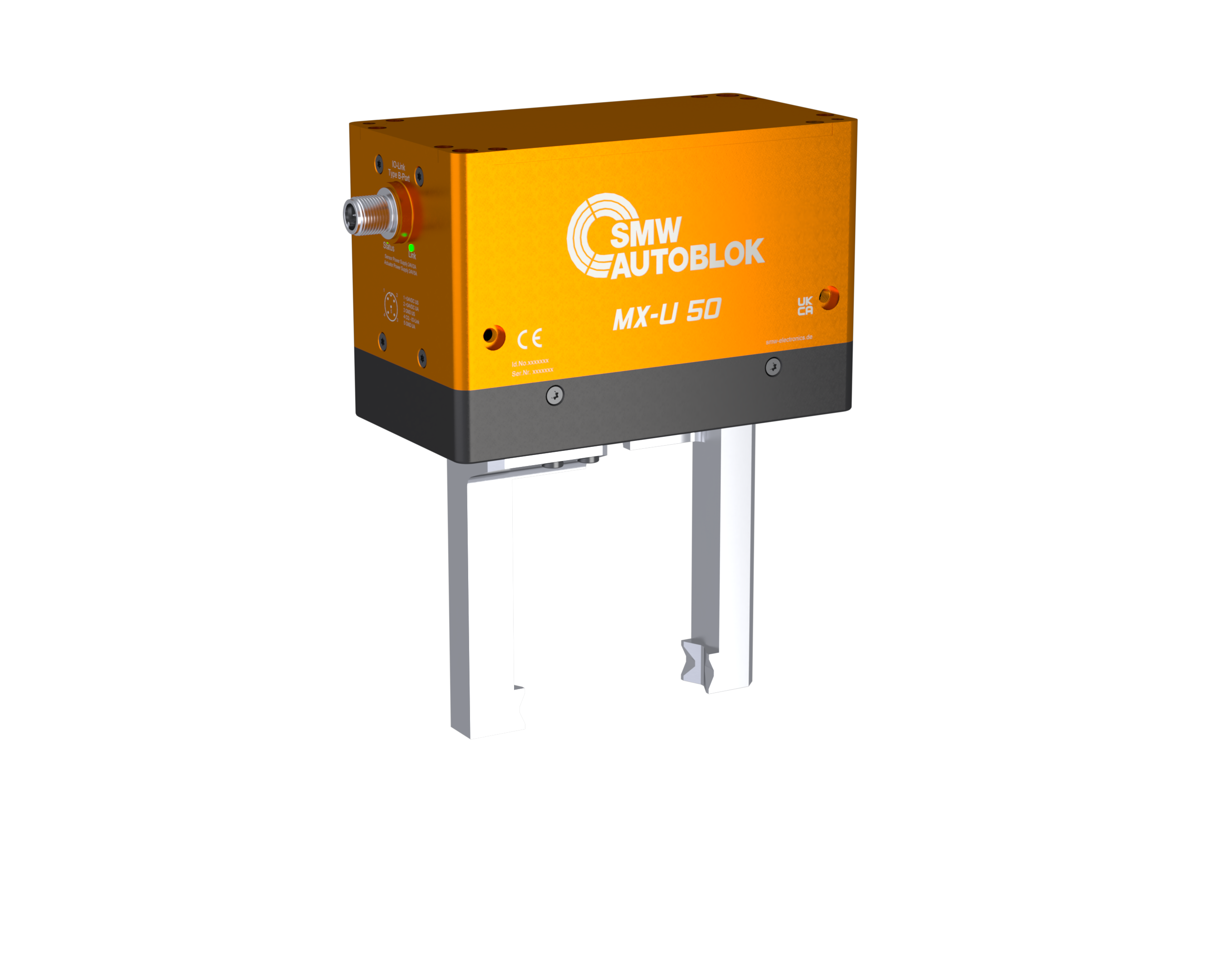

None for MX-U 050

ID-No.: 480270 MX-U 050
Mechatronic universal gripper

  • Gripping force independent of gripping speed and stroke

  • Mechatronic drive with gripping force retention

  • Gripping force up to 300 N

  • Jaw stroke 52,3 mm per jaw

  • Position sensing

  • Pre-positioning and gripping force adjustment

  • Robust and compact design allows universal usage

  • IP54 (electronic IP67) Protection class

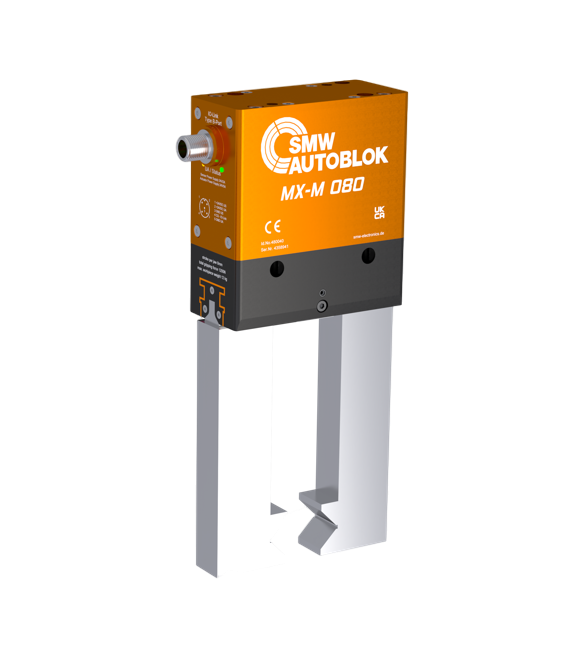

None for MX-M 080 IOL

ID-No.: 480040 MX-M 080 IOL
Mechatronic universal gripper

  • Gripping force independent of gripping speed and stroke

  • Mechatronic drive with gripping force retention

  • Gripping force up to 1200 N

  • Jaw stroke 8,0 mm per jaw

  • Position sensing

  • Pre-positioning and gripping force adjustment

  • IP64 Protection class

  • Robust and compact design allows universal usage
None for MX-M 080 DIO

ID-No.: 480140 MX-M 080 DIO
Mechatronic universal gripper

  • Gripping force independent of gripping speed and stroke

  • Mechatronic drive with gripping force retention

  • Gripping force up to 1200 N

  • Jaw stroke 8,0 mm per jaw

  • Position sensing

  • IP64 Protection class

  • Robust and compact design allows universal usage

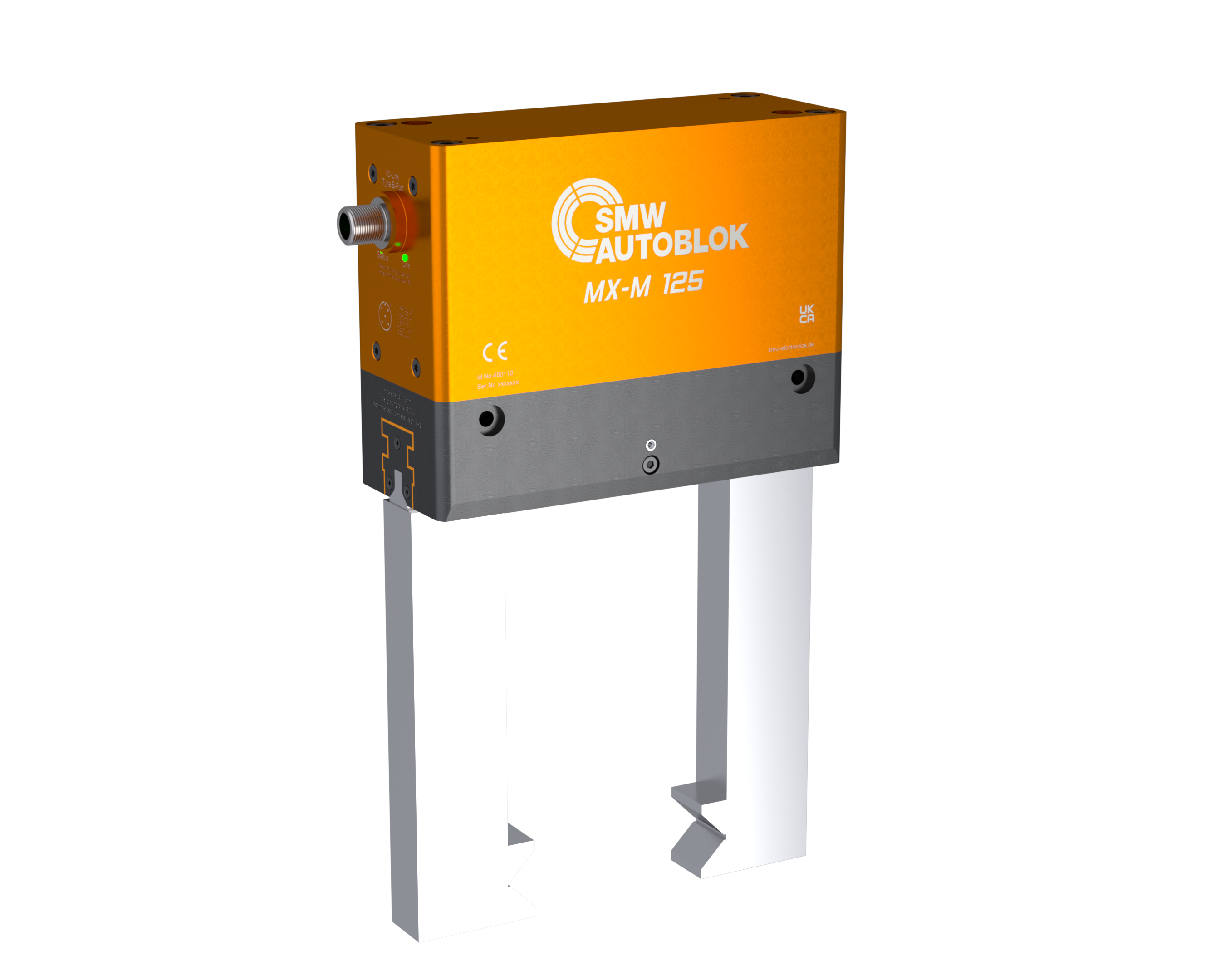

None for MX-M 125 IOL

ID-No.: 480110 MX-M 125 IOL
Mechatronic universal gripper

  • Gripping force independent of gripping speed and stroke

  • Mechatronic drive with gripping force retention

  • Gripping force up to 1800 N

  • Jaw stroke 13,0 mm per jaw

  • Position sensing and

  • Pre-positioning and gripping force adjustment

  • IP64 Protection class

  • Robust and compact design allows universal usage
None for MX-M 125 DIO

ID-No.: 480210 MX-M 125 DIO
Mechatronic universal gripper

  • Gripping force independent of gripping speed and stroke

  • Mechatronic drive with gripping force retention

  • Gripping force up to 1800 N

  • Jaw stroke 13,0 mm per jaw

  • IP64 Protection class

  • Robust and compact design allows universal usage

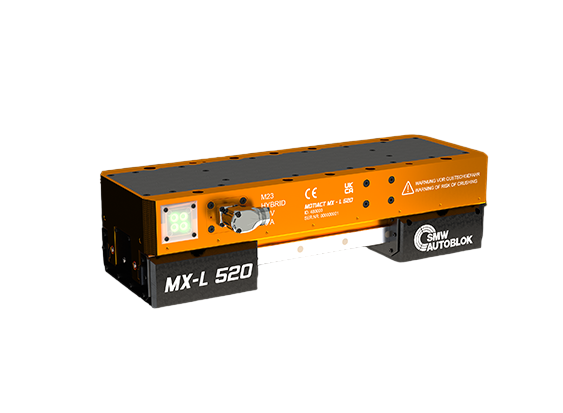

MX-L for MX-L

ID-No.: 480000 MX-L
Mechatronic long-stroke gripper

  • Gripping force independent of gripping speed and stroke

  • Mechatronic drive with gripping force retention in case of power failure

  • Gripping force up to 40 kN

  • Jaw stroke 99 mm per jaw

  • Position sensing and monitoring of the gripping force

  • Pre-positioning and gripping force adjustment

  • Lightweight housing

  • IP67 Protection class
