Mechatronic products

for Mechatronic products

SMW-Autoblok, the technology leader of digitized workholding, offers a complete product range.

Digitized workholding are quickly installed thanks to Plug & Play and existing PLC software modules and offer the user maximum safety as well as significant customer benefits such as

  • Process-reliable automation
  • Mechatronic drives
  • Reduction of CO2 footprint and energy consumption
None for EASY digit Pallet

ID-No.: EASY EASY digit Pallet

  • SLX e-motion retrofit solution

  • Easy automation of existing machine tools

  • No additional pneumatic or hydraulic feed mechanisms required

  • Condition monitoring during loading and clamping via integrated sensors-non-contact, safe transfer of power and signals

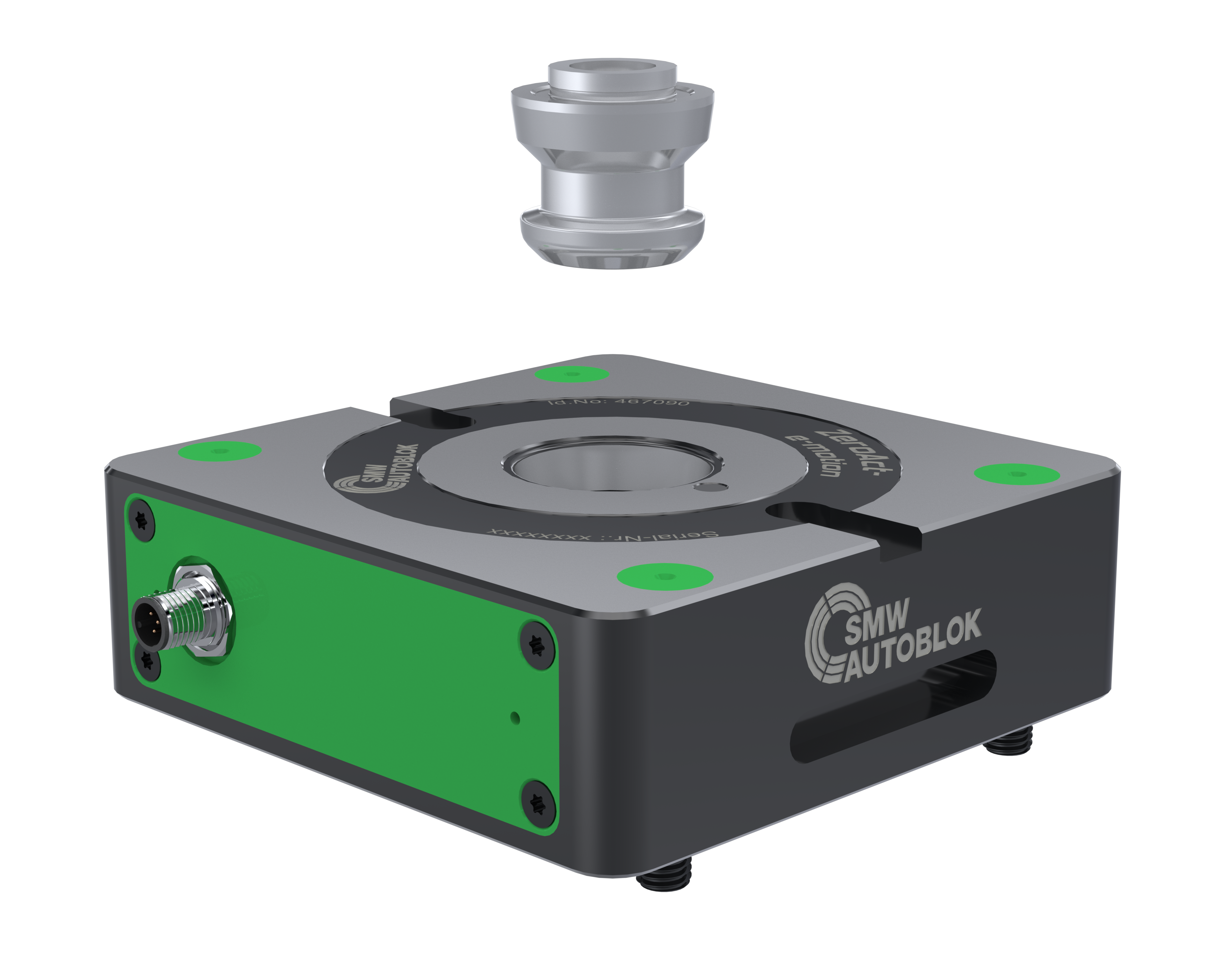

ZeroAct e-motion for ZeroAct e-motion

ID-No.: 467090 ZeroAct e-motion

  • Mechatronic actuation

  • Safety sensors integrated

  • e-sensing for inductive workpiece detection

  • can be automated
None for SLX e-motion 335 compact

ID-No.: 461960 SLX e-motion 335 compact

  • Mechatronic clamping drive

  • Clamping force retention

  • Jaw position/clamping force monitoring

  • Extra long clamping stroke for highest flexibility

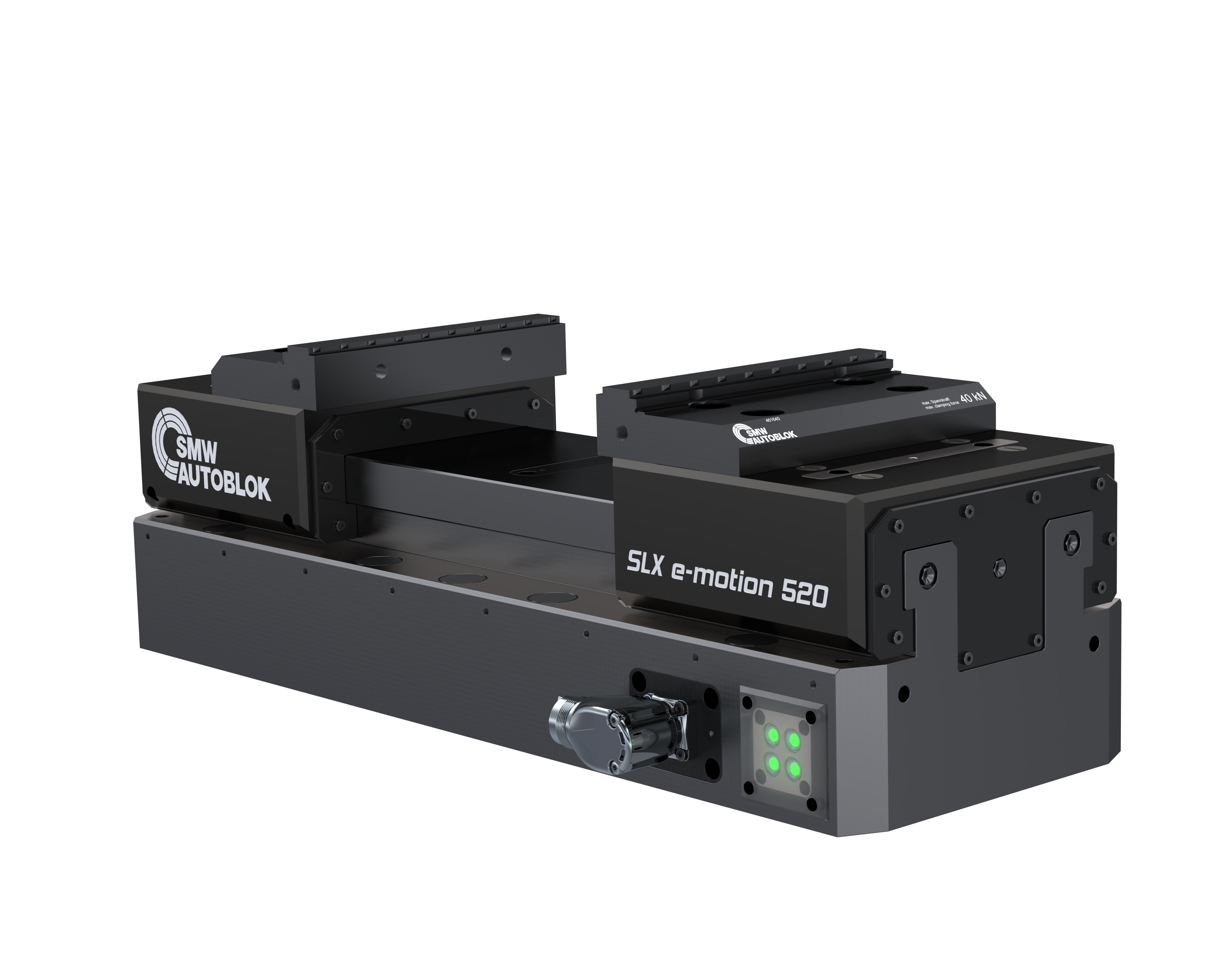

SLX e-motion for SLX e-motion 520

ID-No.: 461600 SLX e-motion 520

  • Mechatronic clamping drive

  • Clamping force retention

  • Jaw position/clamping force monitoring

  • Extra long clamping stroke for highest flexibility
None for SL 160-N e-motion

ID-No.: 460720 SL 160-N e-motion

  • Mechatronic twin vise

  • Clamping force retention

  • Jaw position/clamping force monitoring

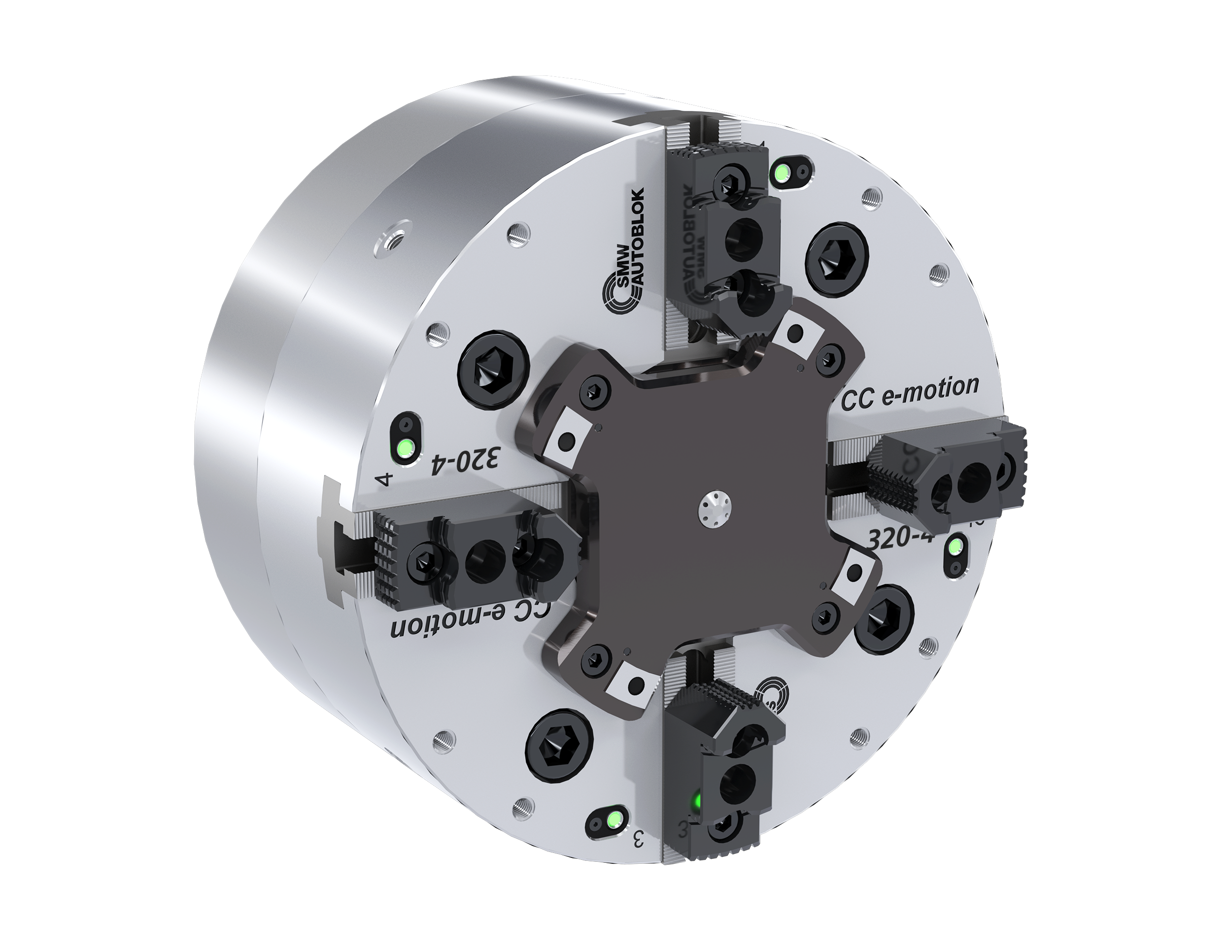

CC e-motion for CC e-motion

ID-No.: 164150 CC e-motion

  • Mechatronic single jaw drive

  • Automatic correction function

  • Centrifugal force compensation

  • High-Low clamping possible

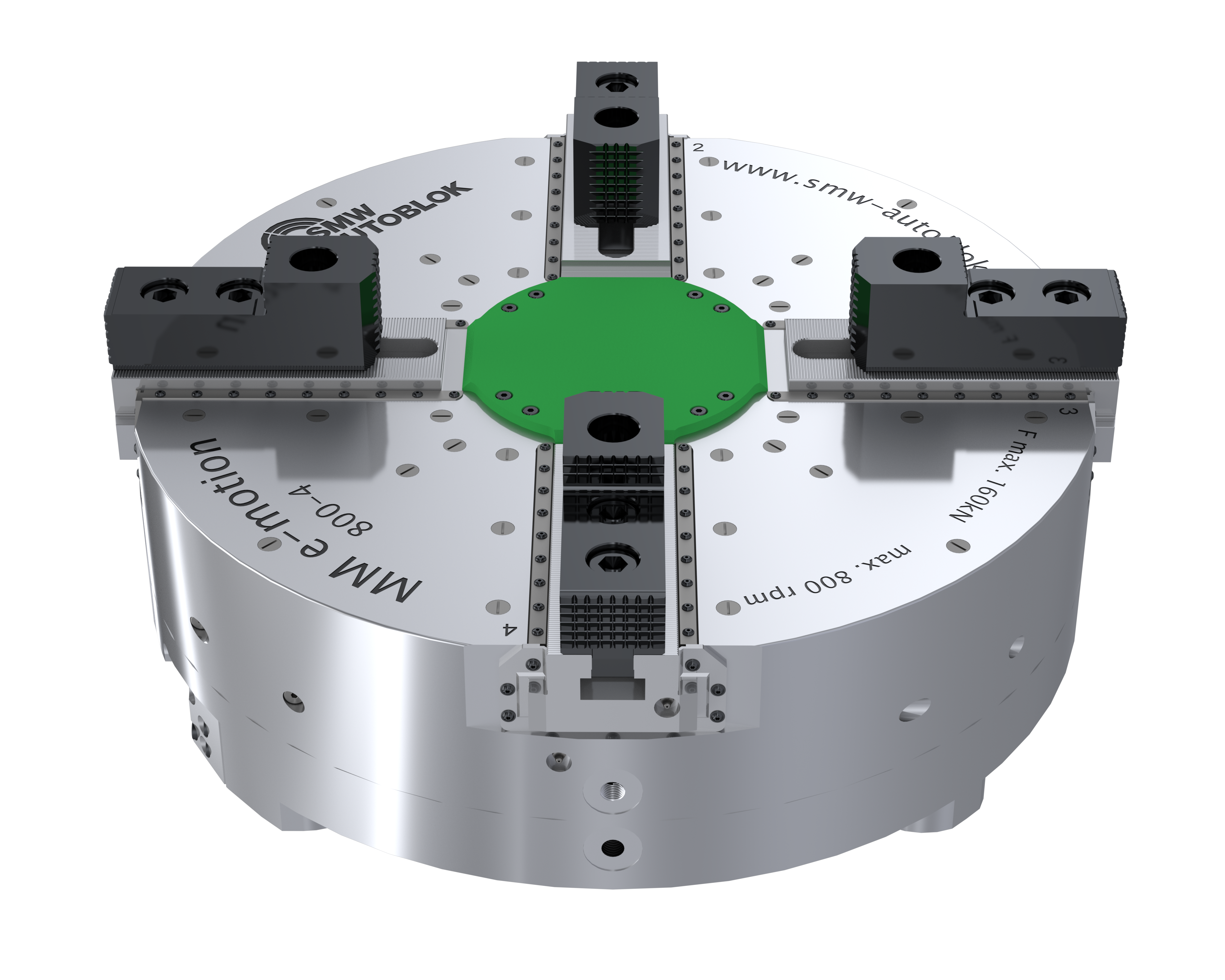

MM e-motion for MM 500 e-motion

ID-No.: 055739 MM 500 e-motion

  • Mechatronic single jaw drive

  • Automatic correction function

  • Precise clamping force adjustment

  • High-Low clamping possible
MM e-motion for MM 800 e-motion

ID-No.: 055270 MM 800 e-motion

  • Mechatronic single jaw drive

  • Automatic correction function

  • High-Low clamping possible

  • Precise clamping force adjustment
RT e-motion for RT e-motion

ID-No.: 463080 RT e-motion

  • Each clamping device can be controlled individually

  • COntact free transmission of energy and data

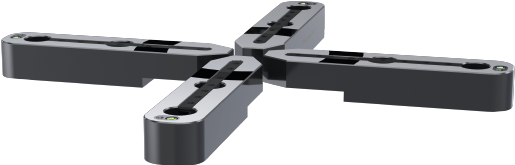

e-sensing for e-sensing

ID-No.: 1234 e-sensing

  • Inductive component detection/distance measurment

  • High-precision, multi-dimensional position control

  • Parameterizable sensor technology

  • Application example: e-sensing on MM e-motion
