Measuring systems

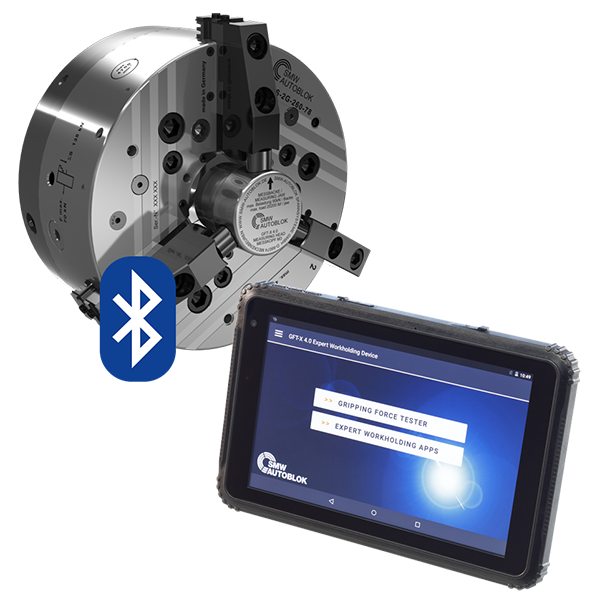

SMW-electronics GFT-X 4.0 multi-device gripping force tester lets you measure static or dynamic clamping forces wirelessly via a chuck head and send the results to the accompanying industry tablet.

The 7-inch GFT-X-4.0 tablet is extremely intuitive and easy to use. The GFT-X-4.0 not only measures the exact gripping force and speed on jaw chucks and collet chucks in static or dynamic mode but is also an industry tablet with a built-in camera and customized apps to guide the user. The tablet is protected to the IP67 standard and has a long battery life, making it suitable for industrial use. The GFT-X 4.0 comes with a variety of measuring heads for jaw chucks, vices and collet chucks. When measuring dynamic gripping forces, the data is transferred from the measuring head to the tablet via Bluetooth.

Measuring systems

ID-No.: 206844 GFT-X 4.0 GRIP FORCE METER

Multi Device Tablet

Dynamic or static gripping force measuring

Expert APPs

Display Software

Set in a practical transport case

ID-No.: 207257 MEASURING HEAD GFT-X 4.0 M1

Measuring head For GFT-X 4.0

For collets

0-75 kN

ID-No.: 207258 MEASURING HEAD GFT-X 4.0 M2

Measuring head For GFT-X 4.0

For collets

0-120 kN

ID-No.: 207074 MEASURING HEAD GFT-X 4.0 M3

Measuring head For GFT-X 4.0

For 3-jaw measuring

0-270 kN

For 2-jaw measuring (0-180 kN)

ID-No.: 207259 MEASURING HEAD GFT-X 4.0 M4

Measuring head For GFT-X 4.0

For 3-jaw measuring

0-45 kN

For 2-jaw measuring (0-30 kN)

High accurate

ID-No.: 207586 MEASURING HEAD GFT-X 4.0 M3-6

Measuring head For GFT-X 4.0

For 6-jaw measuring

0-270 kN

ID-No.: 207587 MEASURING HEAD GFT-X 4.0 M4-6

Measuring head For GFT-X 4.0

For 6-jaw measuring

0-45 kN

High accurate
